10" 20" Fat PP filter , water filter cartridge wholesale

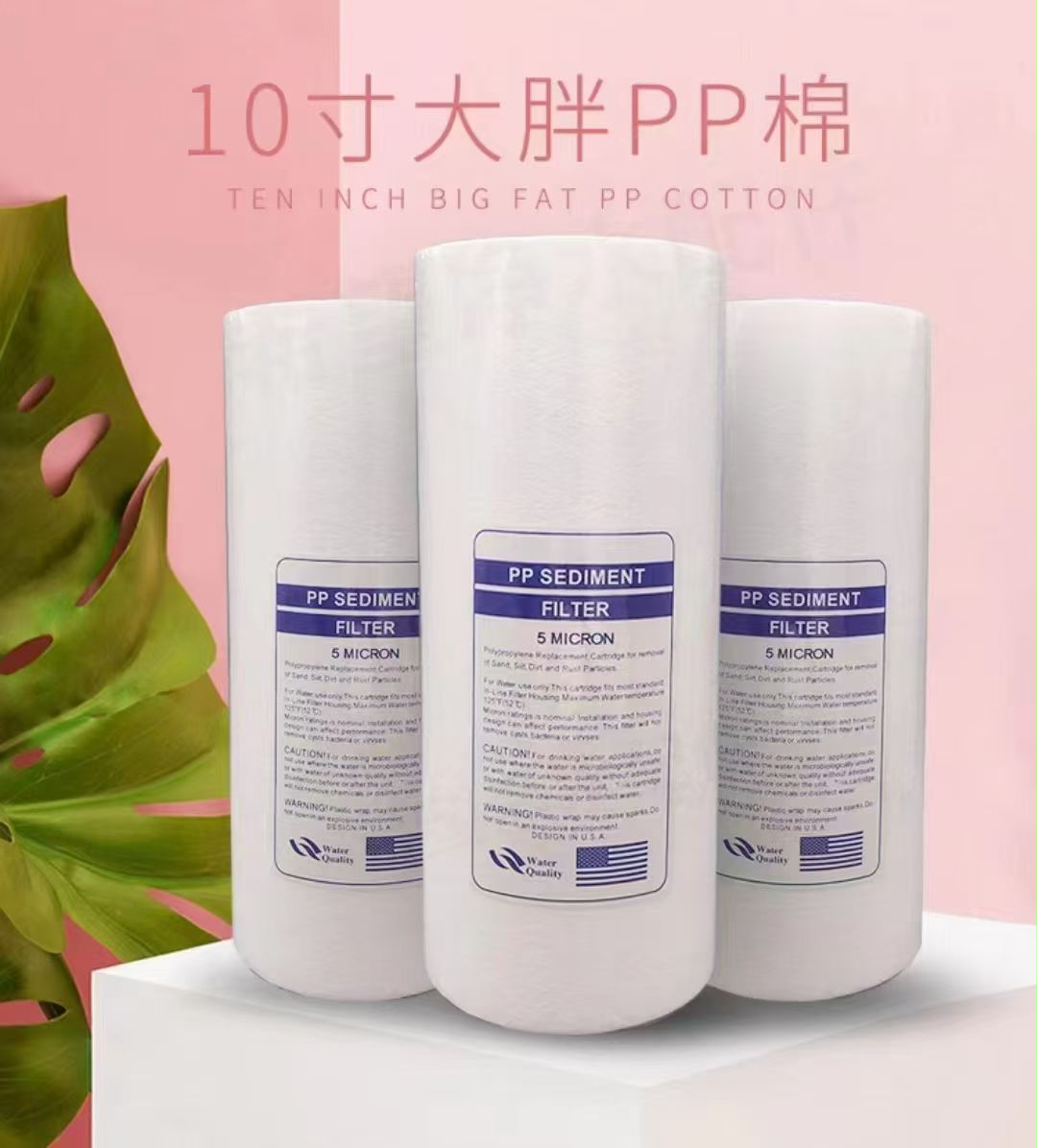

10" / 20" Fat PP Filter (Big Blue Sediment Filter) — Function and Role
A 10-inch or 20-inch "Fat" PP filter (commonly known as a Big Blue polypropylene melt-blown sediment filter) is a high-capacity mechanical pre-filter. Unlike standard slim filters (2.5 inches in diameter), the "fat" version has a larger outer diameter of 4.5 inches, providing significantly more surface area and dirt-holding capacity.
Core Function
The filter uses depth filtration to mechanically intercept suspended solids. As water flows from the outside to the inside of the cartridge, particles are trapped within the dense polypropylene fiber matrix. It effectively removes:
-
Sand, silt, and sediment
-
Rust and metal particles
-
Colloids and large suspended solids
-
Macro particles (depending on the micron rating, typically 1, 5, 10, or 20 microns)
Key Advantages of the "Fat" (Big Blue) Design
-
High Dirt-Holding Capacity: The larger diameter (4.5") provides a much deeper filtration path and greater surface area, allowing it to hold significantly more dirt before clogging compared to standard 10" slim filters.
-
Longer Service Life: Because it holds more contaminants, it requires less frequent replacement.
-
High Flow Rate & Low Pressure Drop: The increased surface area ensures high water flow (often 10–20+ GPM depending on the housing and micron rating) with minimal pressure loss, making it ideal for whole-house or commercial applications.
